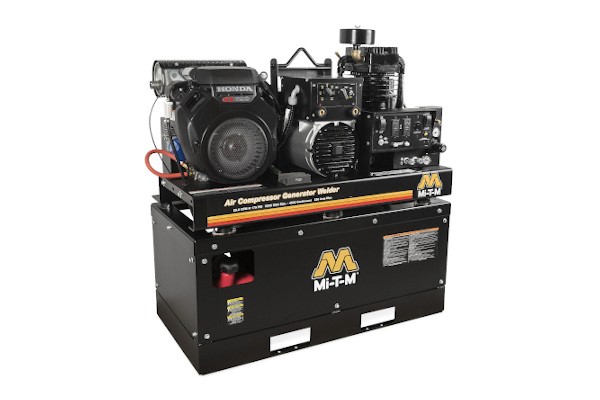

Mi-T-M Two Stage Gasoline 20-Gallon - AGW-SH22-20M
Double tap to zoom
Tank Mount Two Stage Gasoline 20-Gallon - AGW-SH22-20M
Share
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder: Amperage selection switch, 170A or 220A maximum
Frame: Powder coated ASME receiver tank · 14-gauge four-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel
AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle
All models sold in California are required to have the AX-0080 CARB compliant fuel tank.
Equipped with 150-PSI maximum rated regulator.
Specifications
| Displacement/ Engine | 688cc Honda GX690 OHV w/electric start (battery cables included; battery not included) |
| Rated Speed | 3600 RPM |
| CFM @ 90 PSI | 30.5 |
| CFM @ 175 PSI | 29.0 |
| Tank Size | 20-gallon |
| Max. AC Output | 5000 watts |
| Rated AC Output | 4500 watts |
| Alternator Wattage/ Cont. On-Load @ 90 PSI | 4500 watts |
| Alternator Wattage: Cont. On-Load @ 175 PSI | 4500 watts |
| Frequency/Voltage | 60Hz/120V/240V |
| Max. Amps (120V/240V) | 41.5/20.8 |
| Cont. Amps (120V/240V) | 37.5/18.8 |
| Receptacles | (2) 120V, 20A GFCI duplex - 120V/240V, 20A twist lock |
| Duty Cycle (10 min. run time) | 220A @ 40%, 190A @ 60%, 150A @ 100% |
| DC Voltage | 50-220A working range |
| Fuel Tank | 10-gallon |
| Weights & Dimensions | |
| Net Weight | 803 lbs. |
| Shipping Weight | 870 lbs. |
| Length | 47 in. |
| Width | 24 in. |
| Height | 50 in. |
