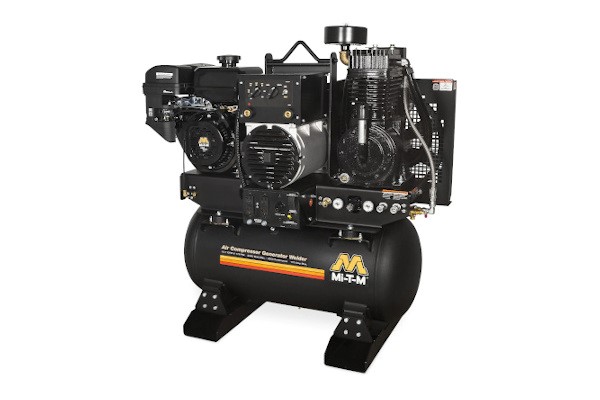

Mi-T-M Two Stage Gasoline 30-Gallon - AGW-SM14-30M

Double tap to zoom

Tank Mount Two Stage Gasoline 30-Gallon - AGW-SM14-30M
Share
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder: Amperage selection switch, 170A or 220A maximum
Frame: Powder coated ASME receiver tank · 16-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel
AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle
All models sold in California are required to have the AX-0080 CARB compliant fuel tank.
Equipped with 150-PSI maximum rated regulator.
Specifications
Displacement/ Engine | 420cc Mi-T-M OHV with electric start - battery and battery cables not included |
Rated Speed | 3600 RPM |
CFM @ 90 PSI | 16.4 |
CFM @ 175 PSI | 15.7 |
Compressor | Two stage, cast iron |
Tank Size | 30-gallon receiver tank |
Max. AC Output | 5000 watts |
Rated AC Output | 4500 watts |
Alternator Wattage/ Cont. On-Load @ 90 PSI | 3000 watts |
Alternator Wattage: Cont. On-Load @ 175 PSI | 2500 watts |
Frequency/Voltage | 60Hz/120V/240V |
Max. Amps (120V/240V) | 41.5/20.8 Off-Load |
Cont. Amps (120V/240V) | 37.5/18.8 Off Load |
Receptacles | (2) 120V, 20A GFCI duplex, (1) 120V/240V, 20A twist lock |
Duty Cycle (10 min. run time) | 150A @ 100% |
DC Voltage | 50-170A working range |
Fuel Tank | 1.85-gallon |
Weights & Dimensions | |
Net Weight | 585 lbs. |
Shipping Weight | 650 lbs. |
Length | 46 in. |
Width | 22in. |
Height | 47 in. |
