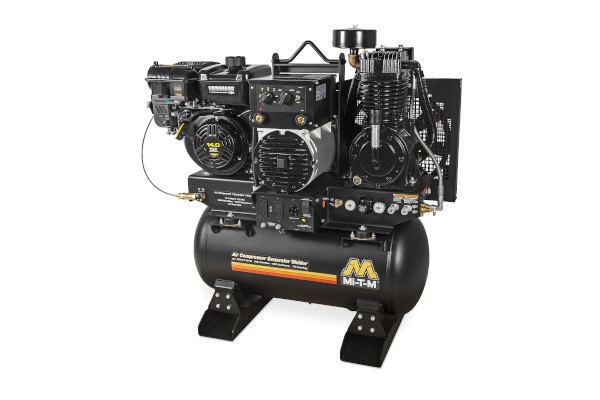

Mi-T-M Two Stage Gasoline 30-Gallon - AGW-SV14-30M

Double tap to zoom



Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170A or 220A maximum

Frame: Powder coated ASME receiver tank · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel

AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

All models sold in California are required to have the AX-0080 CARB compliant fuel tank
Equipped with 150-PSI maximum rated regulator.


Displacement/ Engine 408cc Vanguard OHV with electric start - battery and battery cables not included
Rated Speed 3600 RPM
CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Tank Size 30-gallon
Max. AC Output 5000 watts
Rated AC Output 4500 watts
Alternator Wattage/ Cont. On-Load @ 90 PSI 3000 watts
Alternator Wattage: Cont. On-Load @ 175 PSI 2500 watts
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 41.5/20.8 Off-Load
Cont. Amps (120V/240V) 37.5/18.8 Off-Load
Receptacles (2) 120V, 20A GFCI duplex, (1) 120V/240V, 20A twist lock
Duty Cycle (10 min. run time) 150A @ 100%
DC Voltage 50-170A working range
Fuel Tank 1.53-gallon
Weights & Dimensions
Net Weight 605 lbs.
Shipping Weight 670 lbs.
Length 46 in.
Width 22in.
Height 47 in.
