Mi-T-M Single-Axle

·Jack with pad
·2-inch ball hitch
·Rubber mounted sealed lights
·Tanks enclosed in a powder coated steel frame
·Will fit all Mi-T-M belt-driven pressure washers
·1/4-inch solid steel trailer deck plate
·Aluminum treadplate steps for access to water tank

Accessories & Options:

·Pressure washers
·Hose reels
·Backflow preventers
·Trailer tank bypass
·Trailer hitches

Models Available:
AW-9000-0005 With surge brakes and 200-gallon water tank
AW-9000-0006 With electric brakes and 200-gallon water tank
AW-9000-0007 With 200-gallon water tank only

High Pressure Hose Reels
Includes hose reel with jumper hose and mounting bracket
TX-0001 (13-inch reel for use with all trailers)
TX-0002 (16-inch reel for use with all trailers)

Low Pressure Hose Reel
Includes hose reel with mounting bracket and plumbing
TX-0003 (16-inch reel for use with AW-9000-0003 and AW-9000-0004 trailers)
TX-0013 (16-inch reel for use with AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers)

Replacement Hose Reel Parts
When adding hose reels to the single-axle trailer, use the following jumper and mounting bracket.
15-0159 (Jumper hose)
13-0179A01 (Mounting bracket)
50-0195 (13-inch hose reel, 150-foot maximum hose, rated for units up to 4000-PSI)
50-0196 (16-inch hose reel, 200-foot maximum hose, rated for units up to 4000-PSI)

Backflow Preventers
A backflow preventer is required on trailer units in California
TX-0011
·Adds a backflow preventer to AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers that have the TX-0013 low pressure hose reel option
·Mounts to hose reel or inlet plumbing on trailer
TX-0012
·Adds a backflow preventer to AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers that do not have the TX-0013 low pressure hose reel option
·Mounts to inlet plumbing on trailer

Trailer Tank Bypass
TX-0005 (For use on AW-9000-0003 and AW-9000-0004 trailers with HS Series)
TX-0007 (For use on AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers with a HS Series pressure washer)
· Removes the float system, while adding the necessary plumbing
· Water bypasses back to water tank

Deluxe Trailer Option
TX-0015 (For use on AW-9000-0003 and AW-9000-0004 trailers with HS Series)
TX-0017 (For use on AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers with a HS Series pressure washer)
·Adds a ball valve, trailer tank bypass and low pressure hose reel to the trailer

Trailer Hitches
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes the hitch with brackets and hardware.
TX-0009 (Adjustable trailer coupler hitch for use with AW-9000-0006 and AW-9000-0007 trailers)
TX-0010 (Adjustable trailer coupler hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers)
·Heavy-duty, 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket with visual indication of proper closure around the ball – all to ensure a quick, easy and secure hook-up
TX-0018 (Lunette ring hitch for use with AW-9000-0006 and AW-9000-0007 trailers)
TX-0019 (Lunette ring hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers)
·3-inch integrated lunette ring for use with pintle hitches

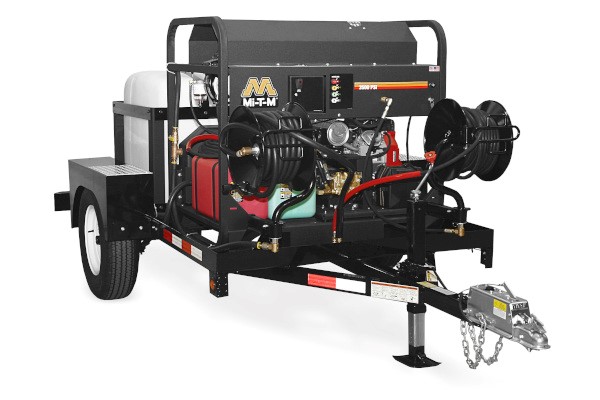

Photo: AW-9000-0005 shown with HS-3505-1MGH hot water pressure washer, hose reels and industrial supply hose, 15-0006 (available as accessories)
