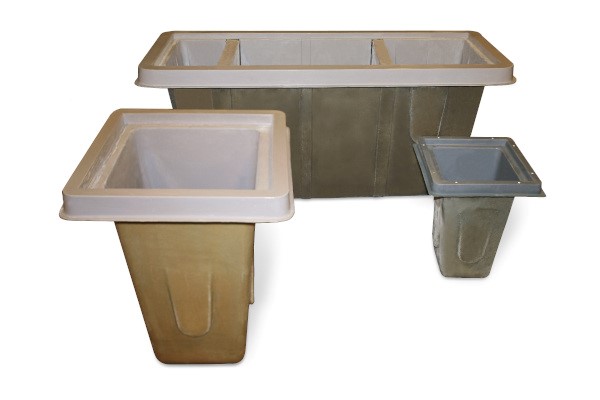

Mi-T-M In-Ground Fiberglass Pits - Pit-Systems

Pit Components are Designed to: Effectively pre-treat wash water for treatment by an above-ground system · Be easily installed by your contractor

3' x 9' Pit System
#12-0074 3' x 9' x 4.5' Pit System
3-stage collection pit, fiberglass, capacity 600-gallons
480 lbs. ship weight

#12-0223 3' x 9' x 4.5' Pit System
3' x 9' baffleless pit, fiberglass, capacity 600-gallons
480 lbs. ship weight

#12-0238 3' x 9' x 4.5' Pit System
2-stage collection pit with single baffle, fiberglass, capacity 600-gallons
480 lbs. ship weight

#12-0244 3' x 9' x 4.5' Pit System
3-stage collection pit with middle weir and third baffle, fiberglass, capacity 600-gallons, large solids settling area
480 lbs. ship weight

#20-0635A01 Fits 3' x 9' Pit Size
Above-ground external brace kit for #12-0074
250 lbs. ship weight

#20-1505A01 Fits 3' x 9' Pit Size
Pit liner assembly, painted; 2 qty. are required
45 lbs. ship weight

#56-0032 Fits 3' x 9' Pit Size
Aluminum hinged diamond plate cover with 3 frame sections
100 lbs. ship weight

#RC-0001-0003 Fits 3' x 9' Pit Size
Brace kit for installation of 3-stage collection pit
200 lbs. ship weight

#RC-0018-0001* Fits 3' x 9' Pit Size
Steel grating for pit; 3,060 lb./ft.² uniform load rating
546 lbs. ship weight

#RC-0018-0002* Fits 3' x 9' Pit Size
Steel grating for pit with steel cover
680 lbs. ship weight

*May combine RC-0018-0001 and RC-0018-0002 to have both open and closed sections for the 3' x 9' pits.
Consult factory for more information.

3' x 3' Pit System
#12-0071 3' x 3' x 4.5' Pit System
Catch basin, fiberglass, capacity 100-gallons
190 lbs. ship weight

#20-0480A01 Fits 3' x 3' Pit Size
Steel grating for pit, 2 sections; 6,250 lb./ft.² uniform load rating, H-20 load rated
250 lbs. ship weight

#20-0733A01 Fits 3' x 3' Pit Size
Above-ground external brace kit
250 lbs. ship weight

#20-1553A01 Fits 3' x 3' Pit Size
Pit liner assembly, painted
26 lbs. ship weight

#56-0031 Fits 3' x 3' Pit Size
Aluminum diamond plate cover and frame
30 lbs. ship weight

#RC-0001-0002 Fits 3' x 3' Pit Size
Brace kit for installation of 3' x 3' pit
150 lbs. ship weight

2' x 2' Pit System
#12-0073 2' x 2' x 3' Pit System
Sump pit, fiberglass, capacity 50-gallons
92 lbs. ship weight

#20-0479A01 Fits 2' x 2' Pit Size
Steel grating for pit; 6,660 lb./ft.² uniform load rating, H-20 load rated
100 lbs. ship weight

#56-0030 Fits 2' x 2' Pit Size
Aluminum diamond plate cover and frame
60 lbs. ship weight

#RC-0001-0001 Fits 2' x 2' Pit Size
Brace kit for installation of 2' x 2' pit
75 lbs. ship weight

Recommended Applications:
· Rental Yards
· Golf Courses
· Heavy Equipment Dealers
· Trucking Facilities
· Military Bases
· Truck Rental Fleets
· Diesel Repair Facilities
· Forklift Washing Operations
· Aircraft Maintenance & Restoration
· Shipyards
· Municipalities/State DOTs
· Oil Fields
· Engine Rebuilders & Manufacturers

The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.
