Mi-T-M Undercarriage Wash System - WCU-35-0ME3
New Equipment /
Mi-T-M /
Industrial /
Water Treatment Systems /
Wash Bay Equipment /
Undercarriage Wash System - WCU-35-0ME3
Double tap to zoom
Wash Bay Equipment Undercarriage Wash System - WCU-35-0ME3

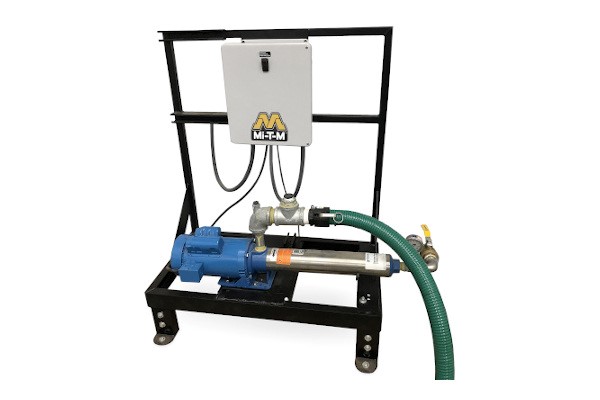

The ideal accessory for any wash bay, this system helps to remove mud and grime build up under vehicles and small equipment. Built in the USA, the durable steel frame ensures longevity even in harsh conditions.
Share
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Powder coated frame with control box and pump
- 3-foot suction hose
- 8-foot stainless-steel spray bar with 16 nozzles
- Shut-off valve
- 250-gallon holding tank
- PLC controls for automatic pump operation with photo-eye and remote box
- ETL listed control panel
Custom built units are available. Consult dealer for more information.
Specifications
| GPM @ PSI | 35 @ 110 |
| Pump | 3.0 HP |
| Power Requirements | 208-230V, 3Ø, 10.0A or 460V, 3Ø 5.0A |
| Spray Bar Cover Dimensions (LxWxH) | 96 x 6 x 0.5 in. |
| Pump Frame Dimensions (LxWxH) | 4 x 3 x 5 ft. |
| Holding Tank Dimensions (WxH) | 36 x 62 in. |
| Weights & Dimensions | |
| Net Weight | 450.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 96.00 in. |
| Width | 6.00 in. |
| Height | 0.50 in. |
